Fuhtah/Works
Train interior
for Luxembourg
Fuhtah/Works
Train interior
for Luxem-
bourg
Testing comfort
and flow at real scale

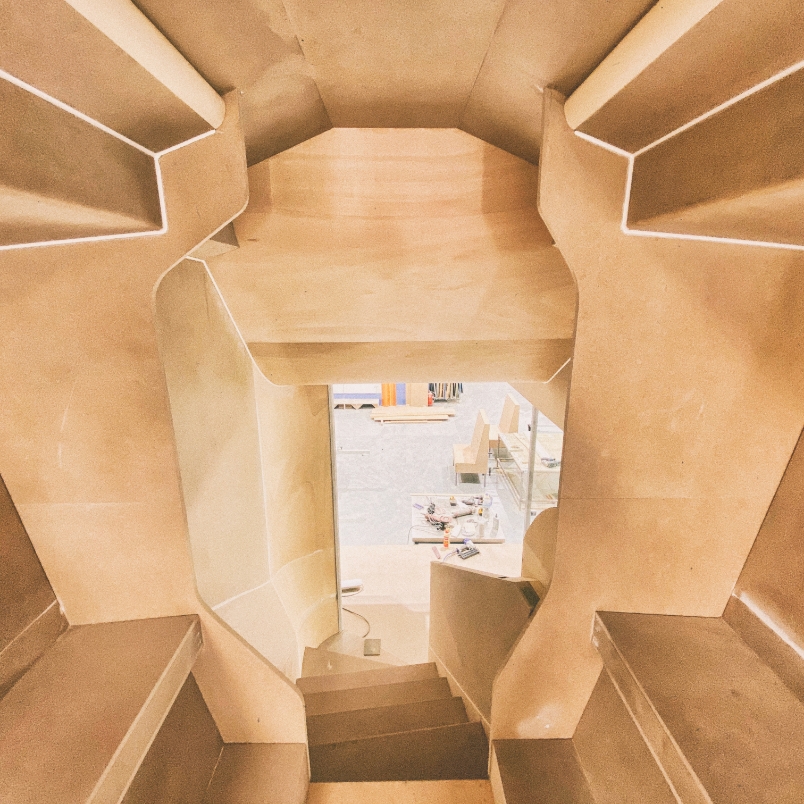

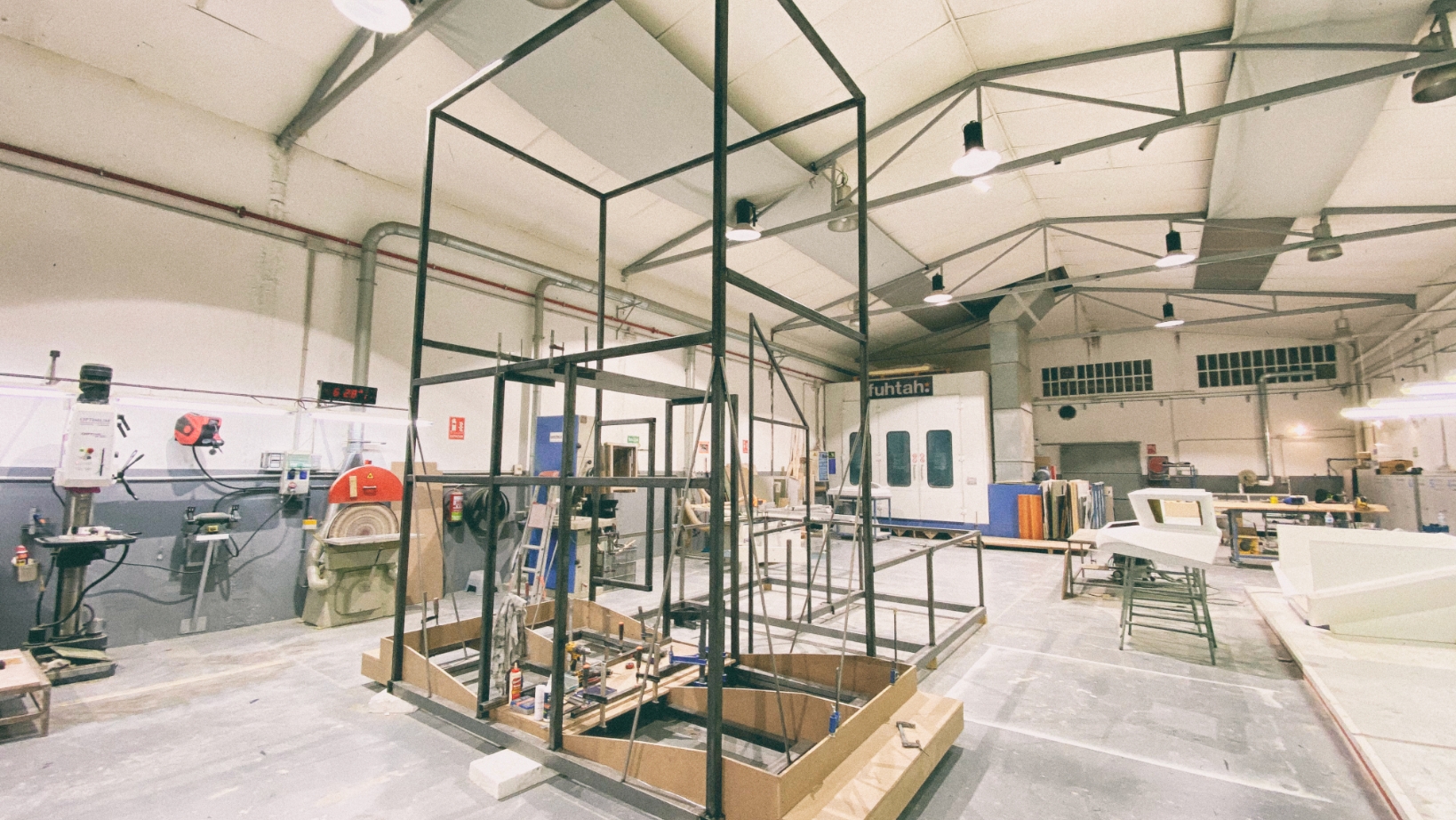

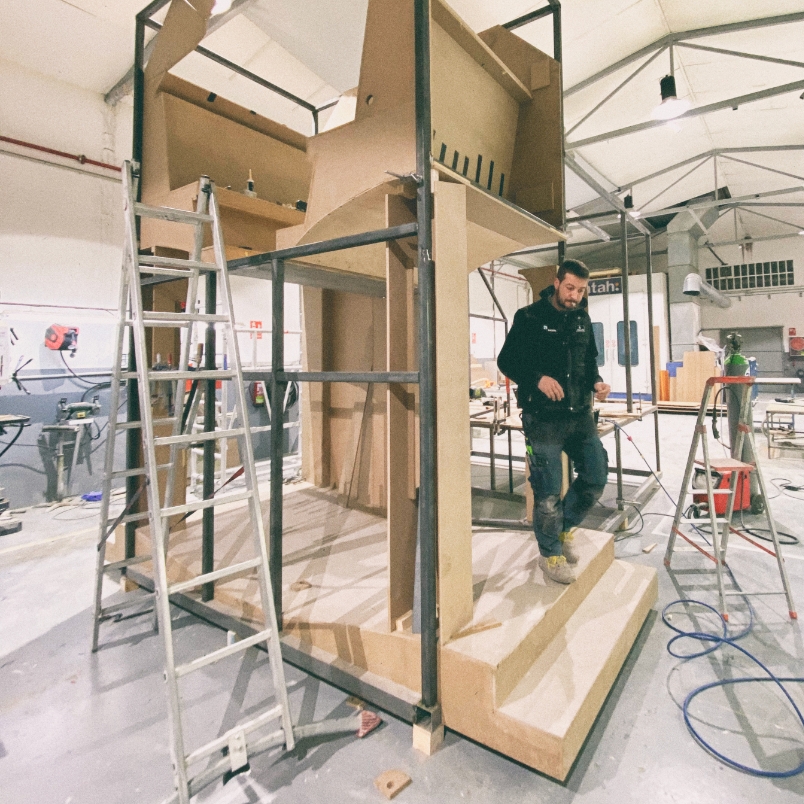

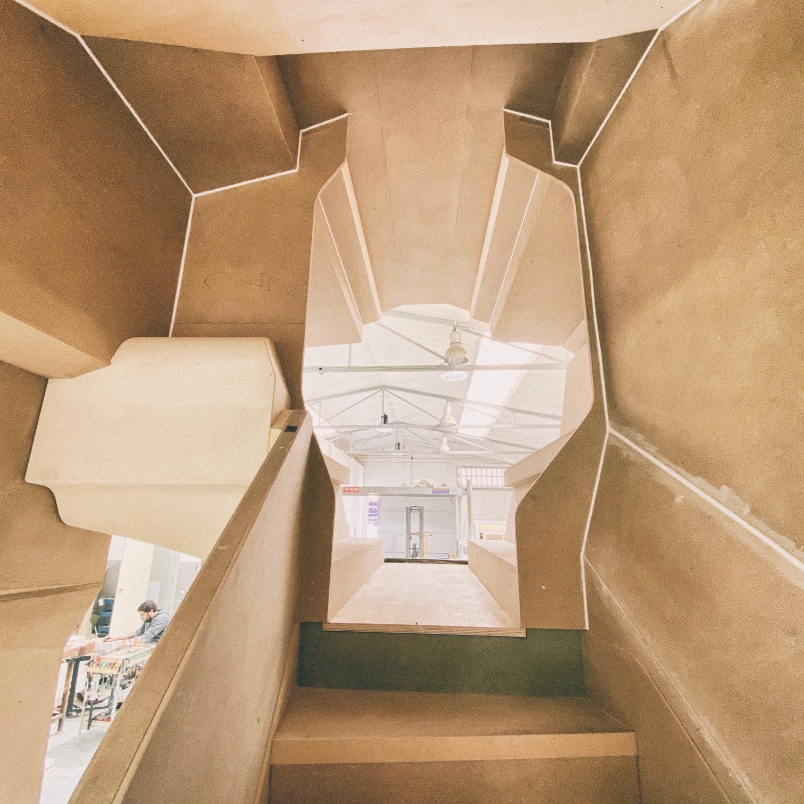

This full-scale interior mockup lets CFL and user groups validate seating, circulation, and accessibility before manufacturing. We start with a steel frame that defines the car envelope. Then we build stairs, handrails, and bulkheads in MDF and wood to test dimensions, reach, and visibility.

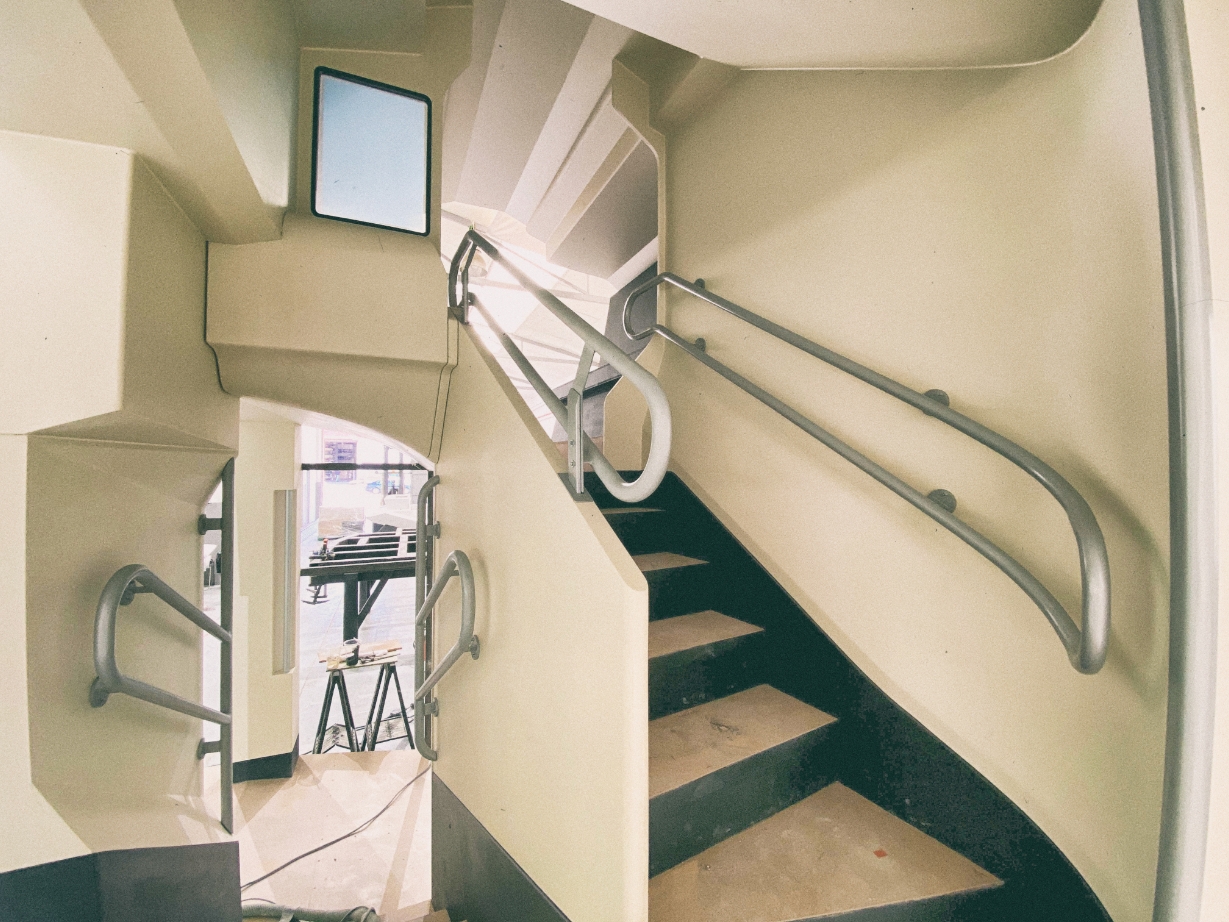

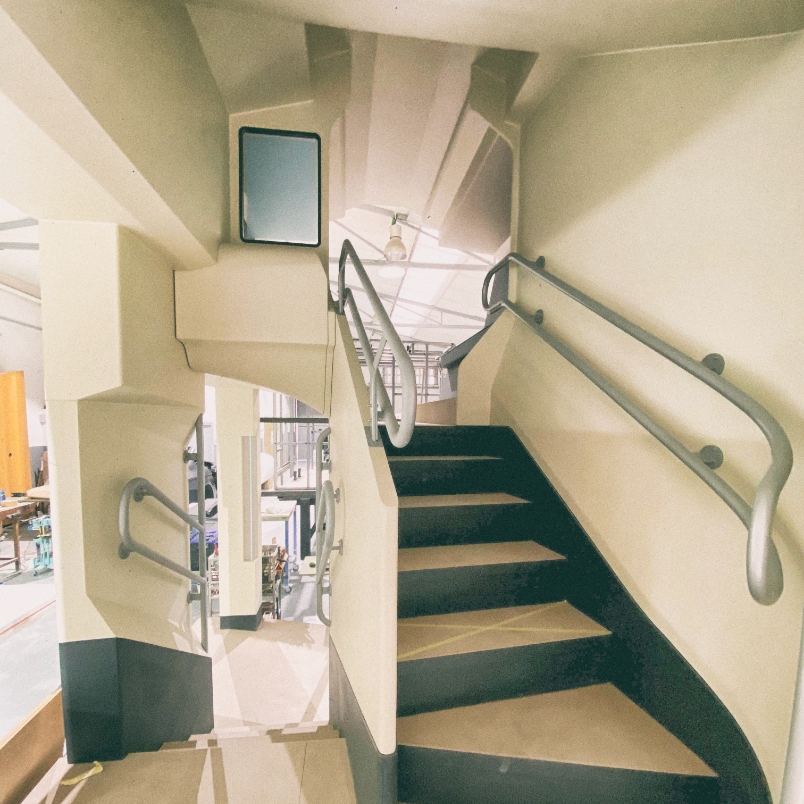

Hand-built structure to test stair pitch, handrail ergonomics, and visual clearance. Each iteration is adjusted on site based on user feedback during live testing sessions with mobility-impaired passengers.
Testing comfort
and flow at real scale
This full-scale interior mockup lets CFL and user groups validate seating, circulation, and accessibility before manufacturing. We start with a steel frame that defines the car envelope. Then we build stairs, handrails, and bulkheads in MDF and wood to test dimensions, reach, and visibility.
Hand-built structure to test stair pitch, handrail ergonomics, and visual clearance. Each iteration is adjusted on site based on user feedback during live testing sessions with mobility-impaired passengers.
Preventing costly changes
The mockup evolves with the project. Walls move, seats change, and materials are swapped in days, not months. This agile process prevents costly changes during series production and ensures the final train meets real passenger needs from day one.
Every element is fabricated to test a hypothesis: Is this step too high? Can two wheelchairs pass here? Is the PIS screen visible from all seats? We document each session and adjust the model accordingly, delivering a validated interior layout ready for industrial engineering.
Preventing costly changes
The mockup evolves with the project. Walls move, seats change, and materials are swapped in days, not months. This agile process prevents costly changes during series production and ensures the final train meets real passenger needs from day one.
Every element is fabricated to test a hypothesis: Is this step too high? Can two wheelchairs pass here? Is the PIS screen visible from all seats? We document each session and adjust the model accordingly, delivering a validated interior layout ready for industrial engineering.

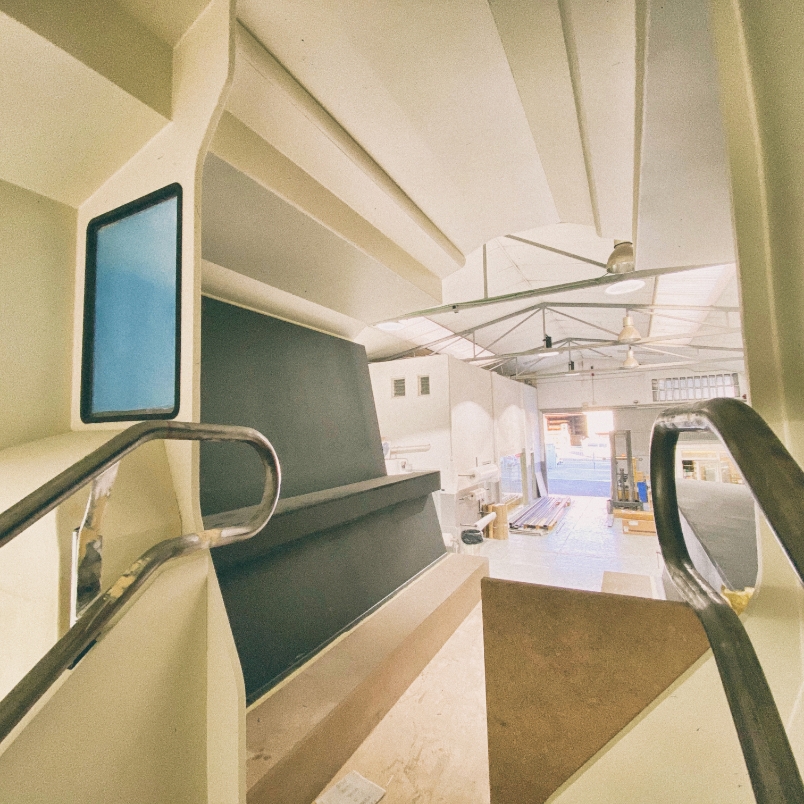

The model is used in workshops with passengers, crew, and accessibility experts to refine details like step height, grab bar position, and wheelchair turning radius. It was also built to verify that wall panels could be manually carried up the stairs during the train’s manufacturing and assembly process, ensuring the production workflow was feasible before final tooling.
From structural frame to finished surfaces, the 1:1 mockup bridges design and reality. Built fast and modified faster, it’s the most effective tool to align operators, manufacturers, and passengers before freezing the design. The result: fewer changes, better accessibility, and a train that works for everyone.
The model is used in workshops with passengers, crew, and accessibility experts to refine details like step height, grab bar position, and wheelchair turning radius. It was also built to verify that wall panels could be manually carried up the stairs during the train’s manufacturing and assembly process, ensuring the production workflow was feasible before final tooling.
From structural frame to finished surfaces, the 1:1 mockup bridges design and reality. Built fast and modified faster, it’s the most effective tool to align operators, manufacturers, and passengers before freezing the design. The result: fewer changes, better accessibility, and a train that works for everyone.
